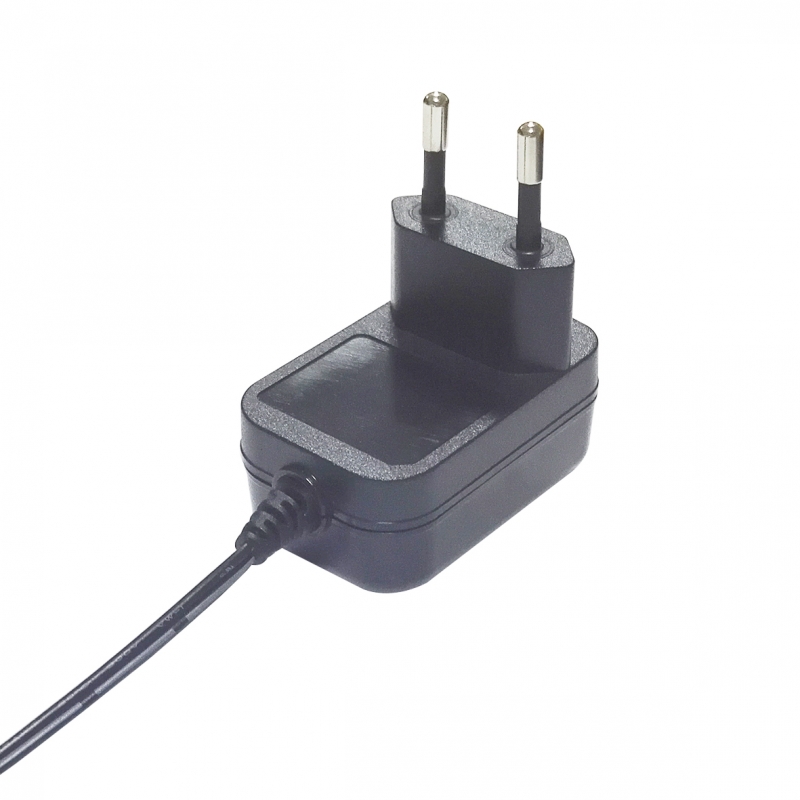

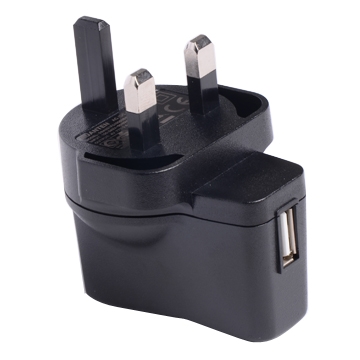

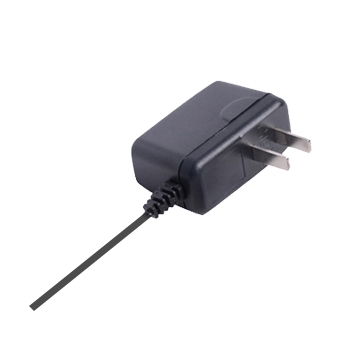

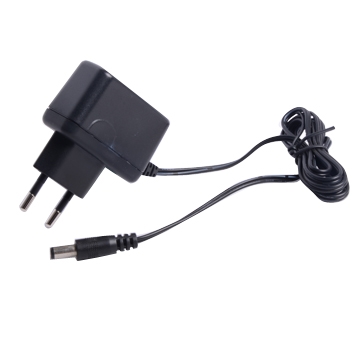

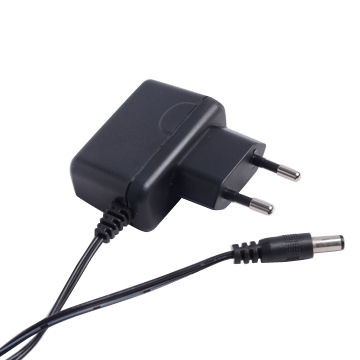

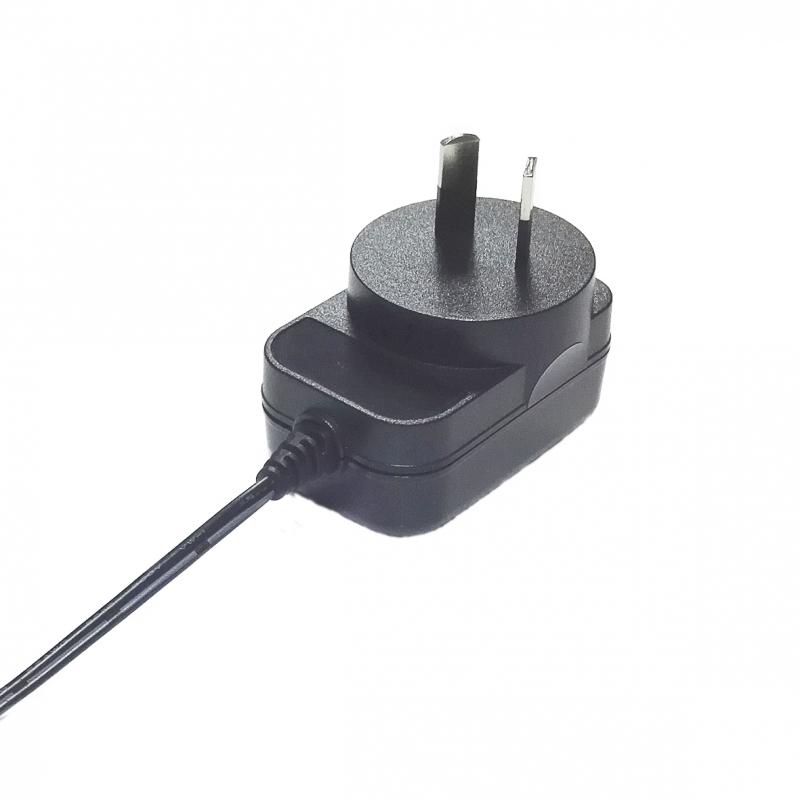

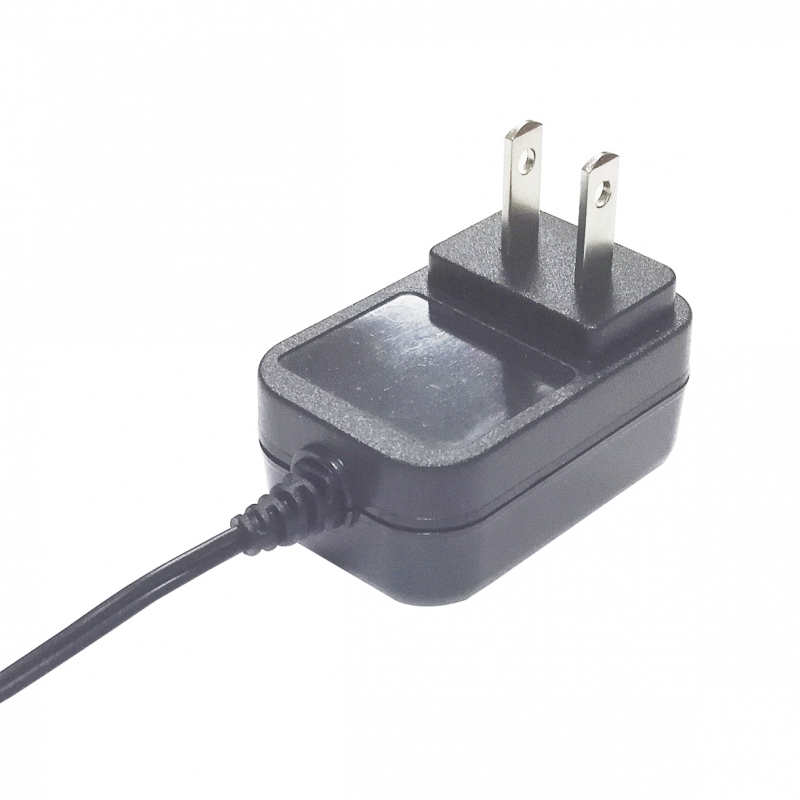

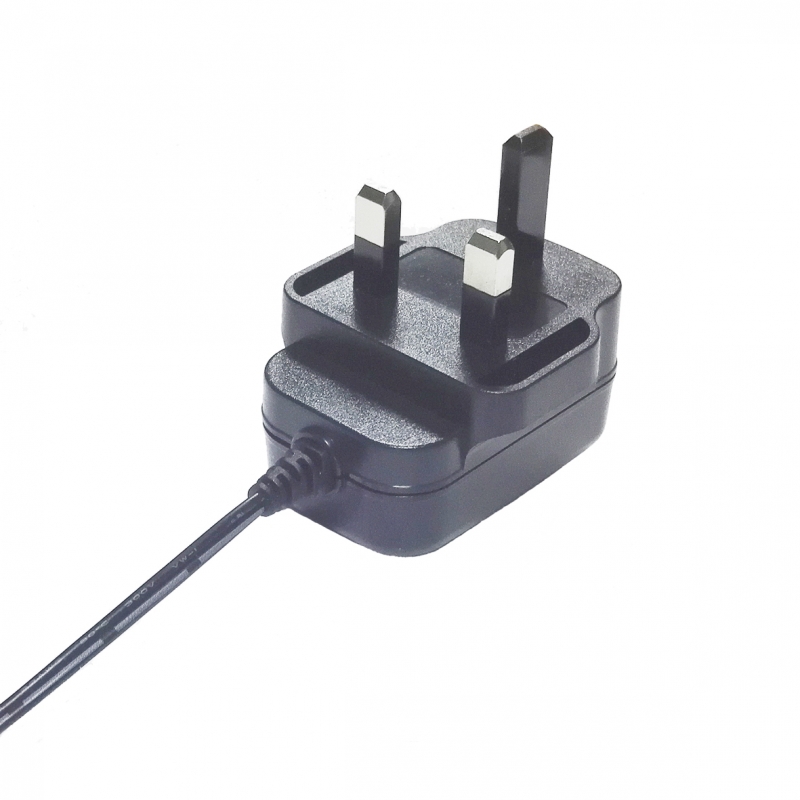

5Watts Series Switching Power adaptor
Product Highlights

·        Universal Input 90 - 264VAC

·        CEC & ErP & DoE Level VI compliant

·        Meet EN55022 Class B

·        Meet CISPR / FCC Class B

·        Over Voltage (Input & Output) Protection, Over current protection

·        Short Circuit Protection

Safety standards

●Information technology equipment

●IEC/EN 60950-1,UL 60950-1,CSA C22.2

No. 60950-1-03,GB4943

●IEC/EN 60065,UL 60065, GB4943

Certificates and approvals

● CB, CE, GS, UL, cUL, C-Tick, CCC, PSE, KC, FCC

EMI Emission

●Radiation test & conduction test：EN 55022/FCC part 15

●Harmonic test：EN 61000-3-2

●Flicker test：EN 61000-3-3

EMS immunity

●ESD test:     EN 61000-4-2

●RS test:        EN 61000-4-3

●EFT test:      EN 61000-4-4

●Surge test:   EN 61000-4-5

●CS test:        EN 61000-4-6

●DIP test:       EN 61000-4-11

Typical Model List
OUTPUT VOLTAGE OUTPUT CURRENT RIPPLE & NOISE VOLTAGE ACCURACY LINE REGULATION LOAD REGULATION MAX OUTPUT POWER
3.6-5.0V 1200mA 250mV ±5% ±2% ±5% 6.0W
5.1-6.0V 1000mA 250mV ±5% ±2% ±5% 6.0W
7.0-12V 660mA 250mV ±5% ±2% ±5% 6.0W

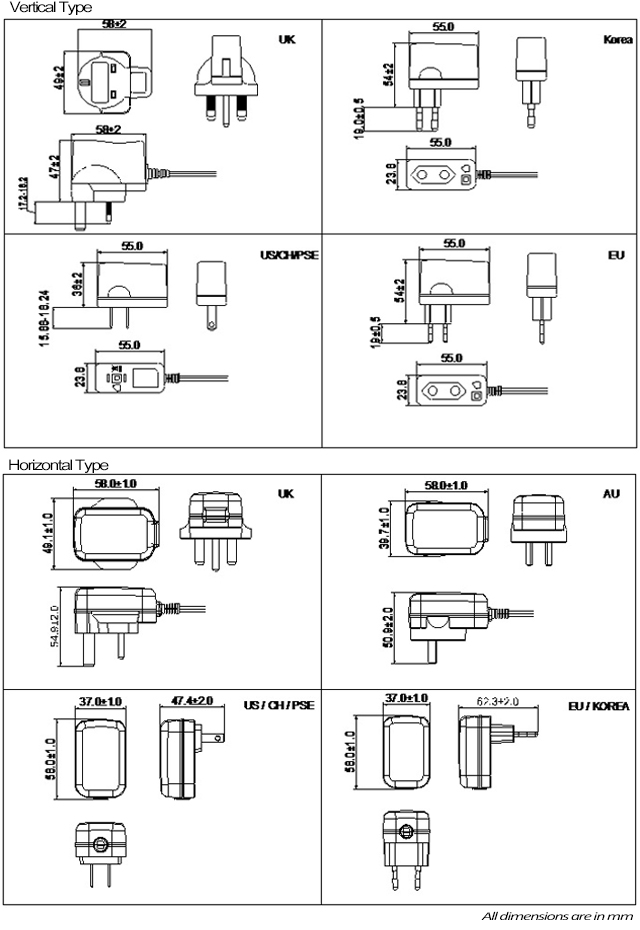

Mechanicals

KT05W measurements
