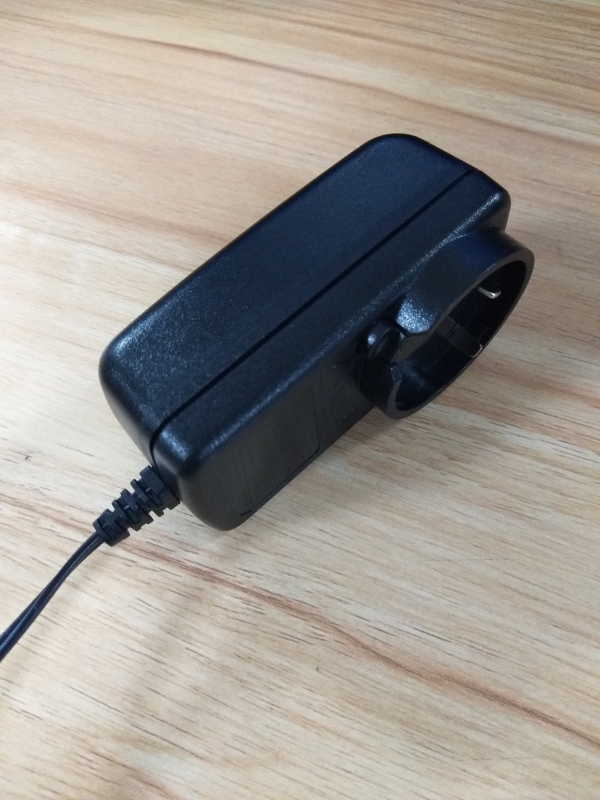

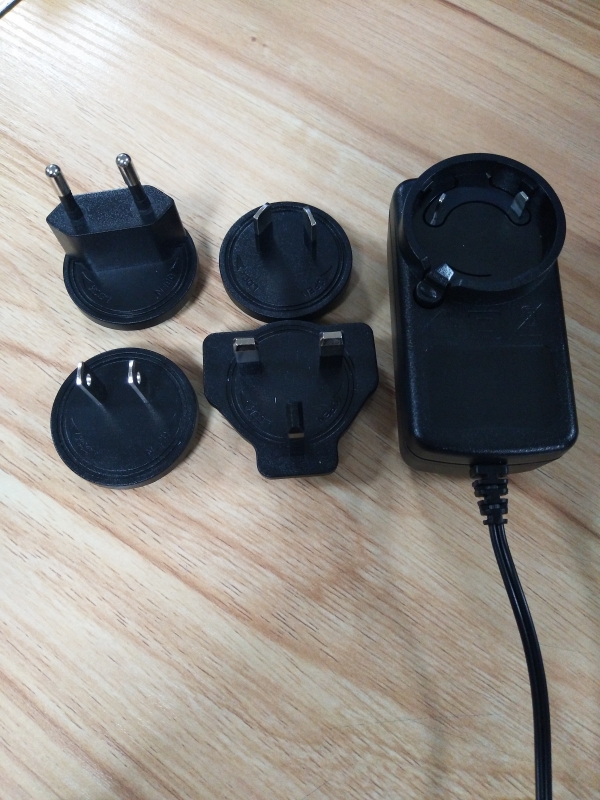

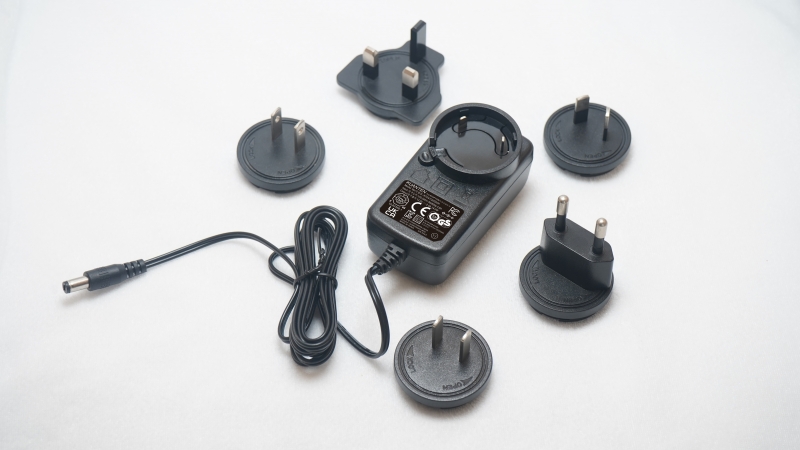

24W Interchangeable Plugs Power Adapter
Product Highlights

·        Universal Input 90 - 264VAC

·        CEC & ErP & DoE Level VI compliant

·        Meet EN55032 Class B

·        Meet CISPR / FCC Class B

·        Over Voltage (Input & Output) Protection, Over current protection

·           Short Circuit Protection

Safety standards

●Information technology equipment

●IEC/EN 60950-1,UL 60950-1,CSA C22.2

No. 60950-1-03,GB4943

●IEC/EN 60065,UL 60065, GB4943

●IEC/EN 61558

Certificates and approvals

● CB, CE, GS, UL, cUL, C-Tick, CCC, PSE, KC, FCC

EMI Emission

●Radiation test & conduction test：EN 55032/FCC part 15, EN55035

●Harmonic test：EN 61000-3-2

●Flicker test：EN 61000-3-3

EMS immunity

●ESD test:     EN 61000-4-2

●RS test:        EN 61000-4-3

●EFT test:      EN 61000-4-4

●Surge test:   EN 61000-4-5

●CS test:        EN 61000-4-6

●DIP test:       EN 61000-4-11

·           Short Circuit Protection

Safety standards

●IEC/EN 60950-1,UL 60950-1,CSA C22.2

No. 60950-1-03,GB4943

●IEC/EN 60065,UL 60065, GB4943

●IEC/EN 61558

Certificates and approvals

● CB, CE, GS, UL, cUL, C-Tick, CCC, PSE, KC, FCC

EMI Emission

●Radiation test & conduction test：EN 55032/FCC part 15, EN55035

●Harmonic test：EN 61000-3-2

●Flicker test：EN 61000-3-3

EMS immunity

●ESD test:     EN 61000-4-2

●RS test:        EN 61000-4-3

●EFT test:      EN 61000-4-4

●Surge test:   EN 61000-4-5

●CS test:        EN 61000-4-6

●DIP test:       EN 61000-4-11

All Model List

Rated O/P voltage range (Vdc)

Rated O/P Current range (A)

Max. O/P power (W)

9.0-15.0

0.01-2.50

30.0

15.1-24.0

0.01-1.98

30.0

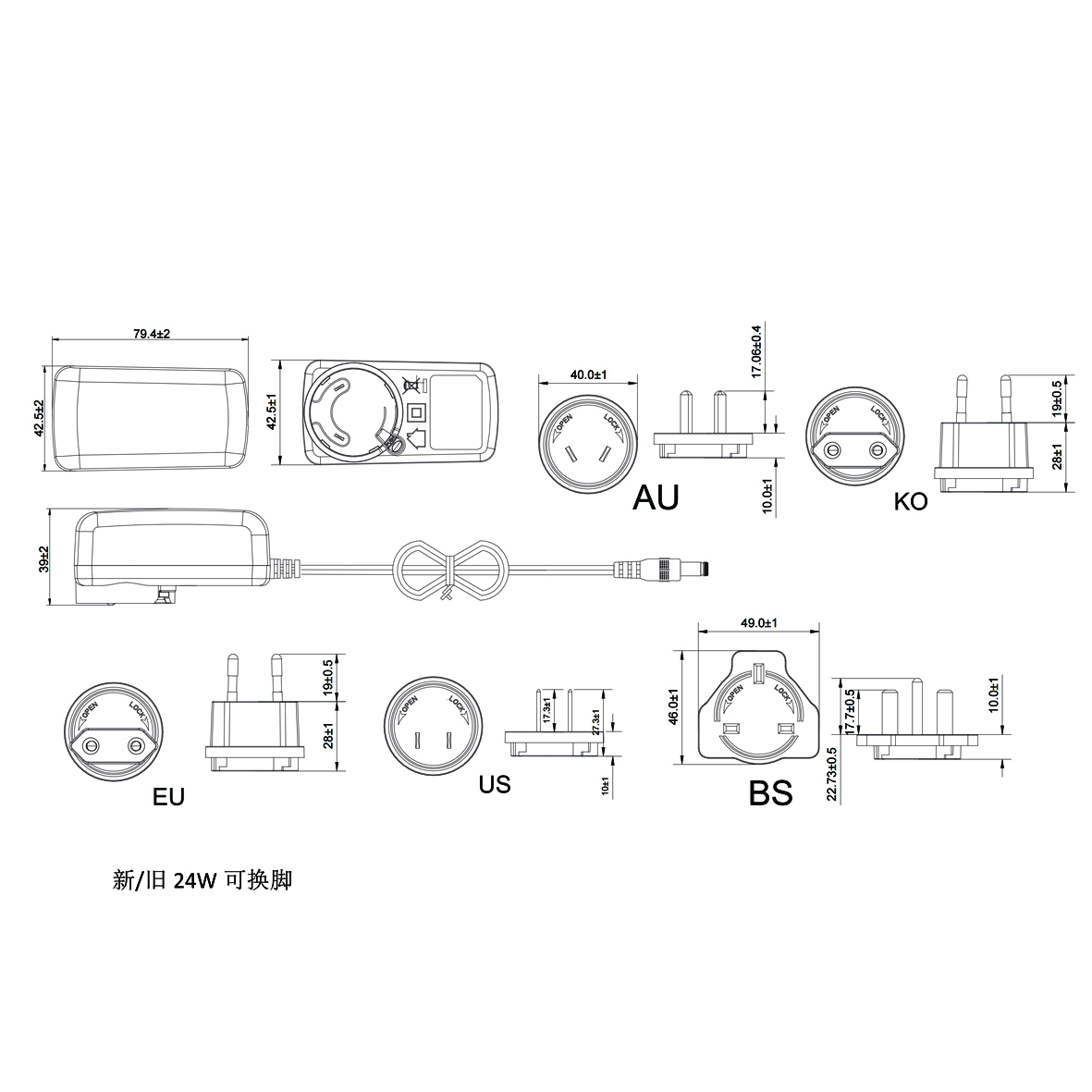

Mechanicals
