36W Series Desktop Power Adapter
Product Highlights
· Universal Input 90 - 264VAC
· CEC & ErP & DoE Level VI compliant
· Meet EN55022 Class B
· Meet CISPR / FCC Class B
· Over Voltage (Input & Output) Protection, Over current protection
· Short Circuit Protection
Safety standards
●IEC/EN 60950-1,UL 60950-1,CSA C22.2
No. 6
●IEC/EN 60065,UL 60065, GB4943
●IEC/EN 61558
Certificates and approvals
● CB, CE, GS, UL, cUL, C-Tick, CCC, PSE, KC, FCC
EMI Emission
●Radiation test & conduction test：EN 55022/FCC part 15, EN55024
●Harmonic test：EN 6
●Flicker test：EN 6
EMS immunity
●ESD test: EN 6
●RS test: EN 6
●EFT test: EN 6
●Surge test: EN 6
●CS test: EN 6
●DIP test: EN 6
Typical Model List
| OUTPUT VOLTAGE | OUTPUT CURRENT | RIPPLE & NOISE | VOLTAGE ACCURACY | LINE REGULATION | LOAD REGULATION | MAX OUTPUT POWER |
| 9.0-12.0V | 3000mA | 150mV | ±5% | ±1% | ±5% | 36.0W |
| 12.1-19.0V | 2970mA | 150mV | ±5% | ±1% | ±5% | 36.0W |
| 19.1-32.0V | 18800mA | 150mV | ±5% | ±1% | ±5% | 36.0W |
| 32.1-48.0V | 1120mA | 150mV | ±5% | ±1% | ±5% | 36.0W |

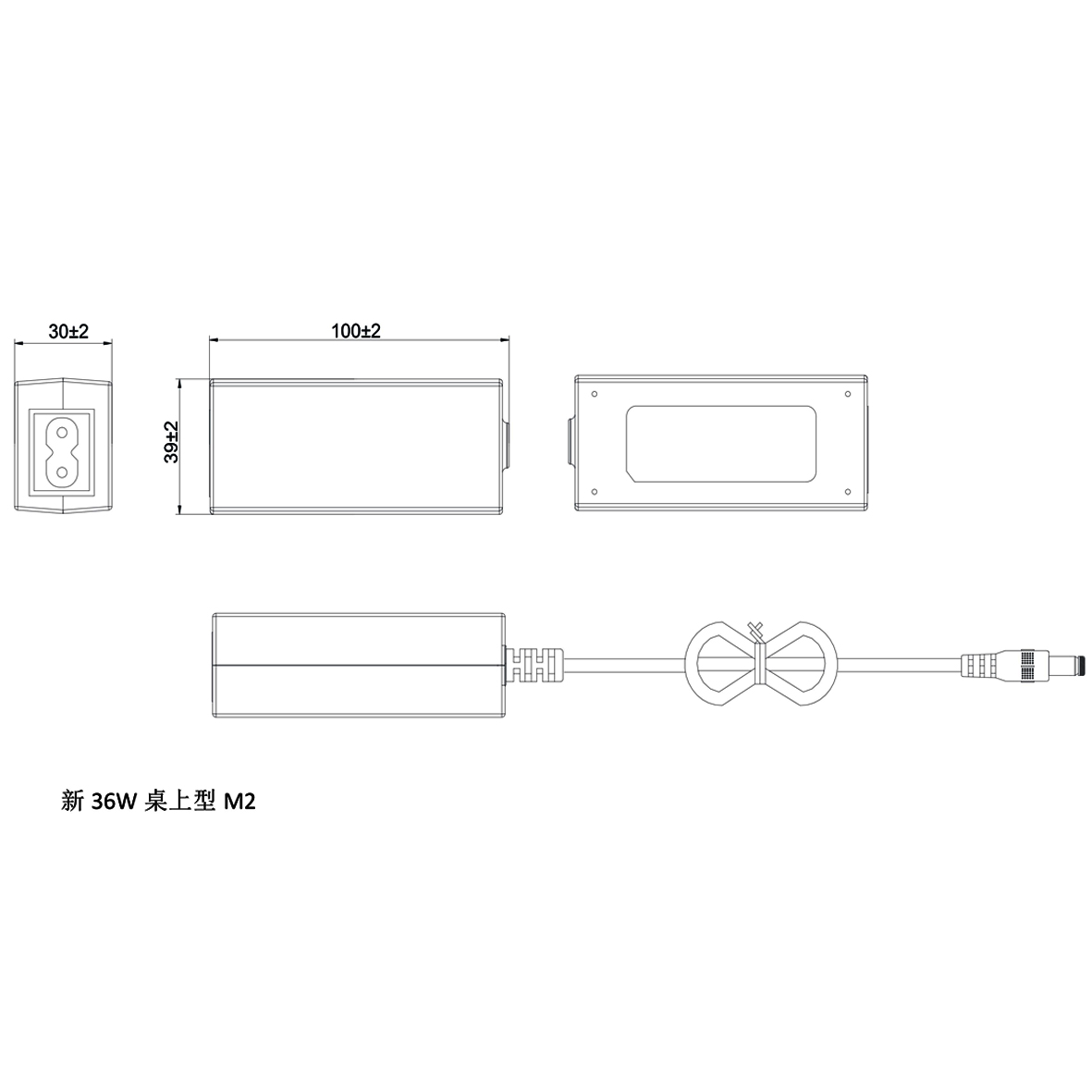

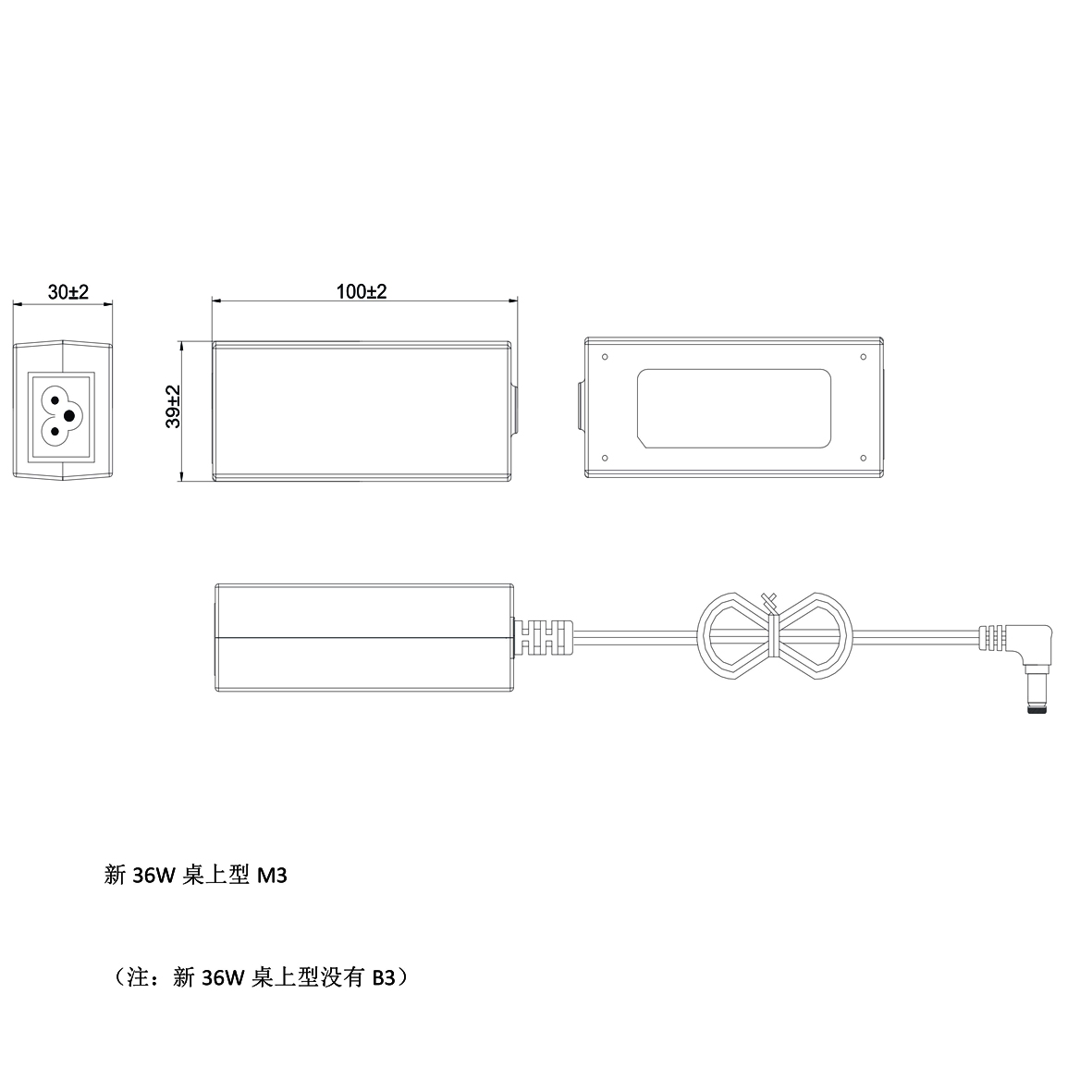

Mechanicals
