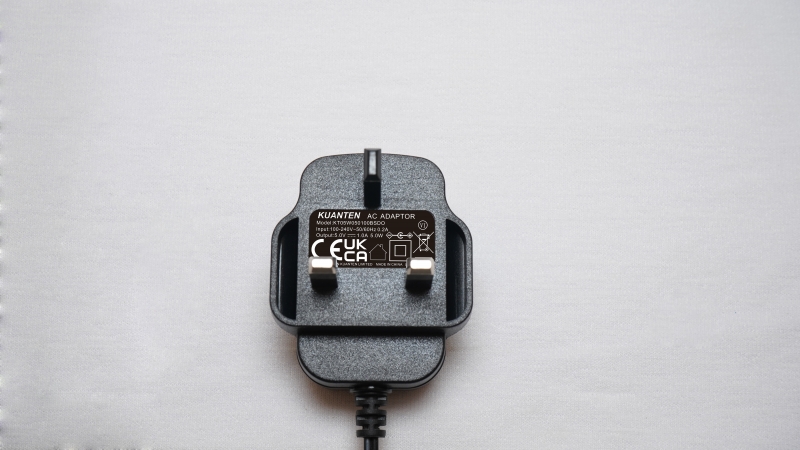

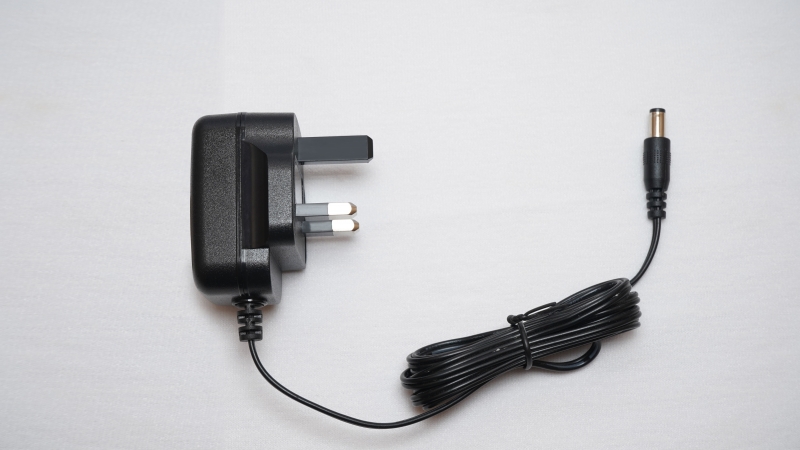

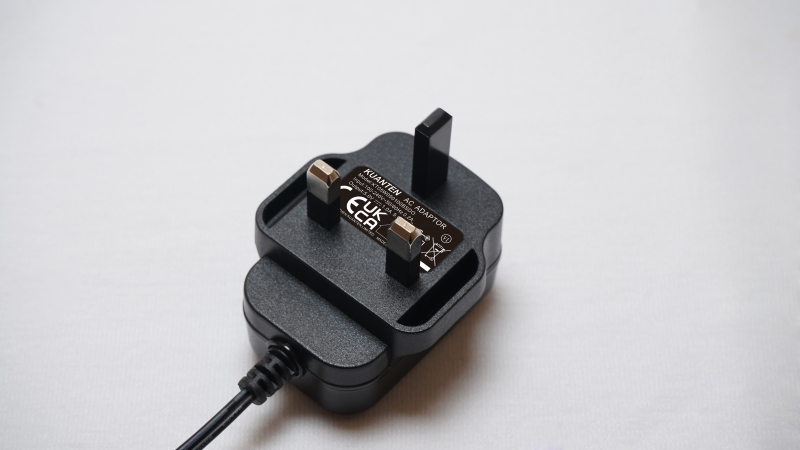

5W Switching AC-DC Adapter UK Plug Type
Product Highlights

·        Universal Input 90 - 264VAC

·        CEC & ErP & DoE Level VI compliant

·        Meet EN55022 Class B

·        Meet CISPR / FCC Class B

·        Over Voltage (Input & Output) Protection, Over current protection

·           Short Circuit Protection

Safety standards

●Information technology equipment

IEC/EN 60950-1,UL 60950-1,CSA C22.2

No. 60950-1-03,GB4943

IEC/EN 60065,UL 60065, GB4943

IEC/EN 61558

Certificates and approvals

 CB, CE, GS, UL, cUL, C-Tick, CCC, PSE, KC, FCC

EMI Emission

Radiation test & conduction testEN 55022/FCC part 15, EN55024

Harmonic testEN 61000-3-2

●Flicker testEN 61000-3-3

EMS immunity

ESD test:     EN 61000-4-2

RS test:        EN 61000-4-3

EFT test:      EN 61000-4-4

Surge test:   EN 61000-4-5

CS test:        EN 61000-4-6

DIP test:       EN 61000-4-11

Typical Model List
OUTPUT VOLTAGE OUTPUT CURRENT RIPPLE & NOISE VOLTAGE ACCURACY LINE REGULATION  LOAD REGULATION  MAX OUTPUT POWER
3.6-5.5V 2000mA 150mV ±5% ±1% ±5% 11.0W
5.6-8.9V 1960mA 150mV ±5% ±1% ±5% 11.16W
9.0V 1400mA 150mV ±5% ±1% ±5% 12.6W
9.1-11.8V 1310mA 150mV ±5% ±1% ±5% 12.0W
11.9-12.6V 1000mA 150mV ±5% ±1% ±5% 12.6W
12.7-19.0V 940mA 150mV ±5% ±1% ±5% 12.06W
19.1-30.7V 620mA 150mV ±5% ±1% ±5% 12.0W
30.8-32.0V 380mA 150mV ±5% ±1% ±5% 12.16W

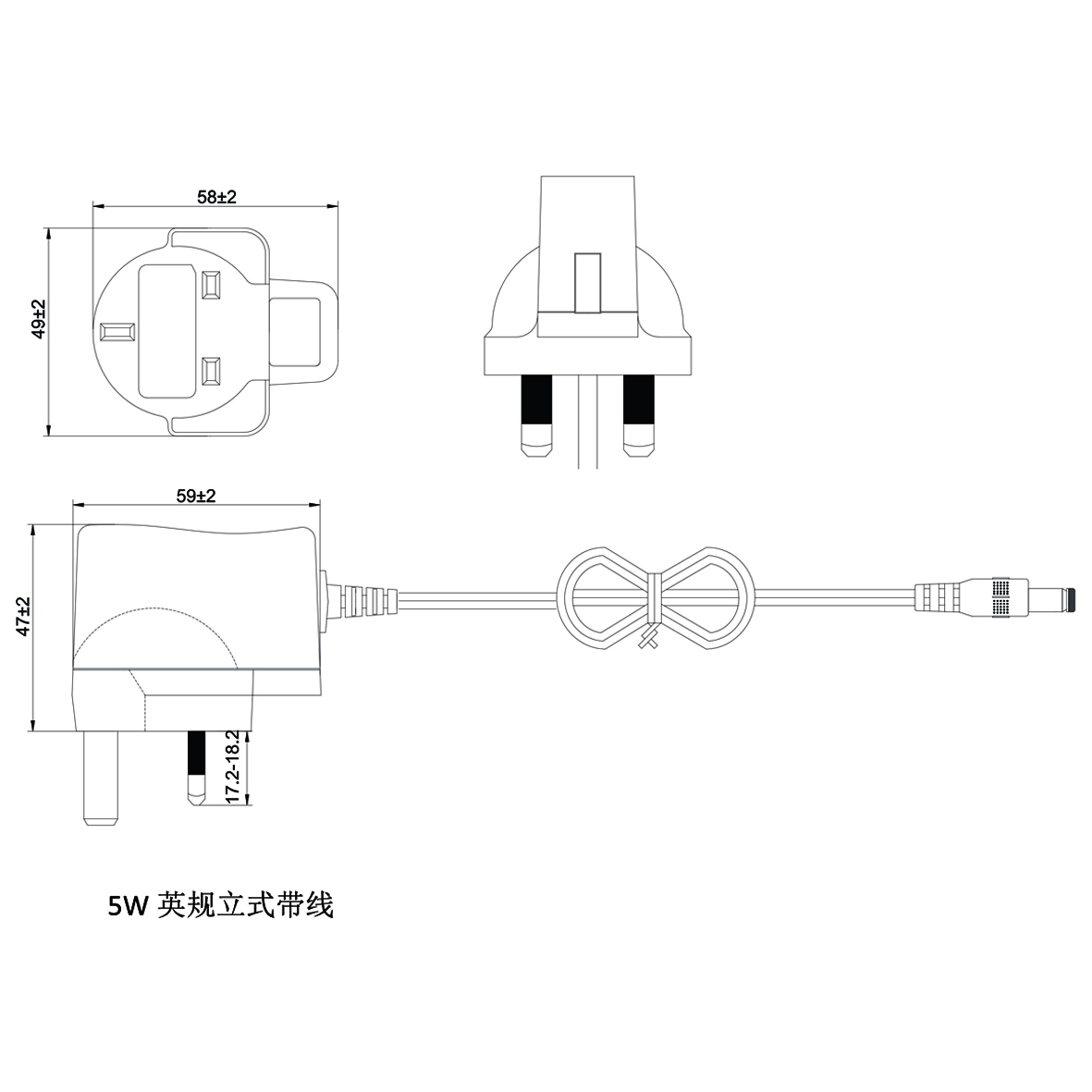

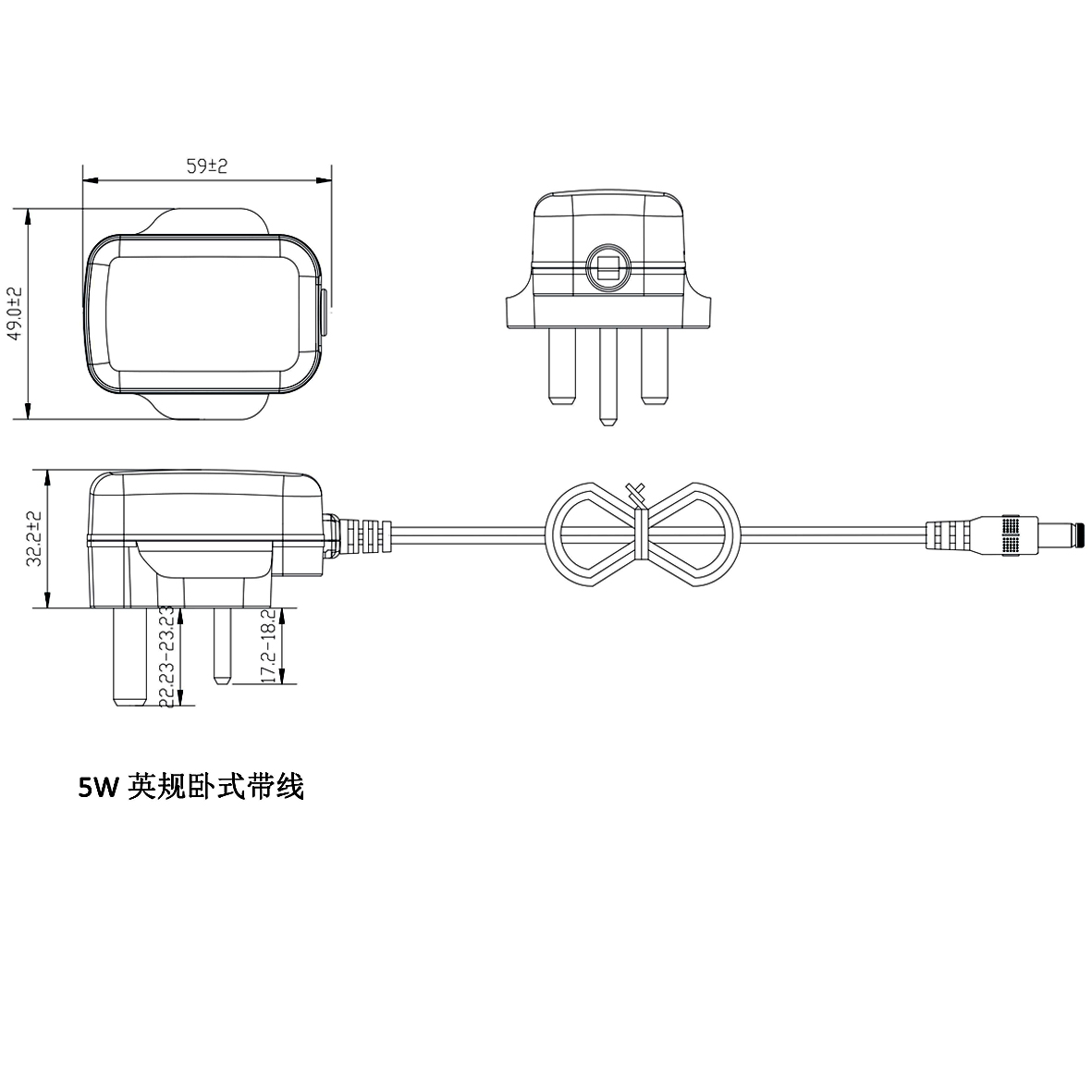

Mechanicals
KT12W interchangeable meas.
