Features
Universal AC input/Full range

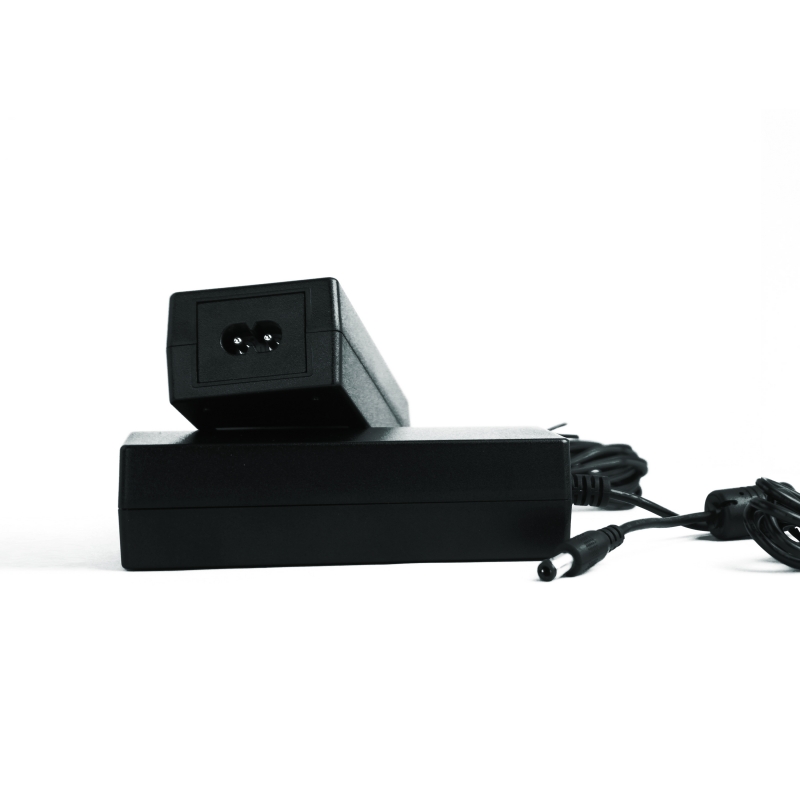

Ac inlet:C14/C6/C8
Built-in Active PFC Function
No load power consumption<0.075W
Energy efficiency Level VI
Comply with EISA 2007/DOE,NRC,AU GEMS, EU ERP and COC version 5
Class Ⅰ or Class Ⅱ power
Protections:short circuit /Overload/Over Voltage/Over temperature
Fanless design with -10 to +40℃
Fully enclosed plastic case

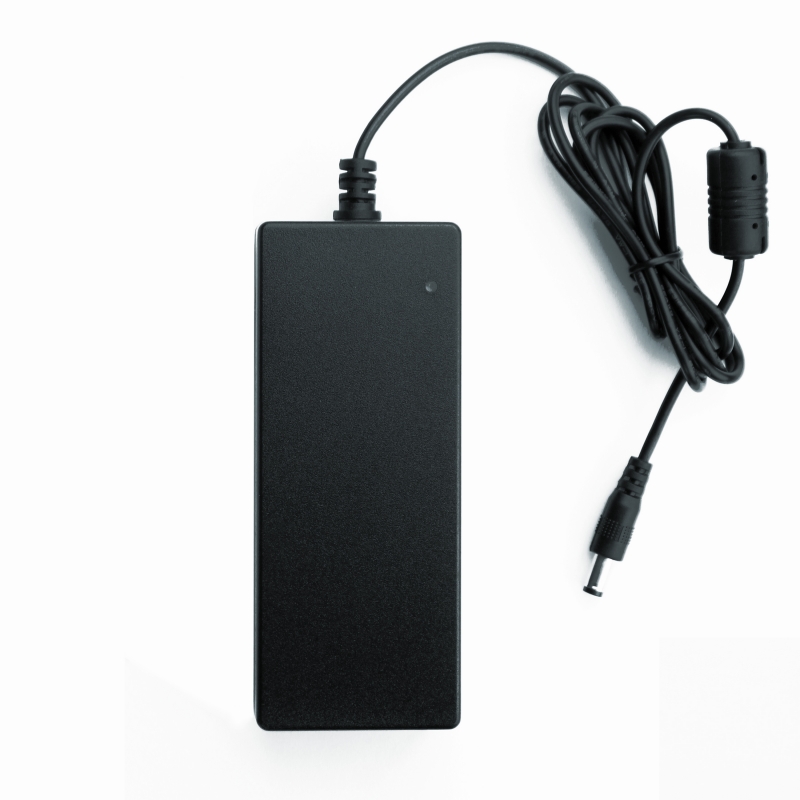

LED indicator for power on.
Safer plastic insulation shell design
Product spec
Specification
O/P Voltage |
O/P Current |
Ripple & Noise(Max.) |
Voltage Accuracy |
Line Regulation |
Load Regulation |
O/P Power(max.) |
12.0 V |
0.1-5.00 A |
250 mVp-p |
±5% |
±1% |
±5% |
60.0W |
19.0 V |
0.1-3.43A |
250 mVp-p |
±5% |
±1% |
±5% |
60.0W |
24.0 V |
0.1-2.71A |
250 mVp-p |
±5% |
±1% |
±5% |
60.0W |
36.0 V |
0.1-1.66A |
250 mVp-p |
±5% |
±1% |
±5% |
60.0W |
48.0 V |
0.1-1.25A |
250 mVp-p |
±5% |
±1% |
±5% |
60.0W |
Voltage range |
90-264Vac |
Frequency range |
50/60Hz |
Power factor |
PF>0.9/230Vac PF>0.9/115Vac at full load |
Efficiency |
Min.88% All models |
AC current |
Max. 1.3A |
Inrush current |
Max.120A |
Leakage current |
Max.0.75mA/240Vac |
Overload |
105-200% rated output power |
Protection type: Hiccup mode,recovers automatically after fault condition is removed. |
|
Over voltage |
105-150% rated output voltage. |
Protection type: Lock no output@50% load |
|
Over temperature |
Protection type: Shut down o/p voltage,re-power on to recover. |
Working temp |
-10 to +40℃ |
Working humidity |
20% to 90% RH non-condensing |
Storage temp &humidity |
-20 to +80℃ & 10-95%RH |
Temp coefficient |
±0.03%/℃ (0-50℃） |
All Model List
Rated O/P voltage range (Vdc) |
Rated O/P Current range (A) |
Max. O/P power (W) |
12.0-18.9 |
0.10-5.0 |
60.00 |
19.0-30.0 |
0.10-3.43 |
65.17 |
30.1-54.0 |
0.10-1.99 |
60.00 |
Certificates and approvals
● CB, CE, GS, UL/CUL, FCC, SAA, RCM, CCC, PSE, KC, KCC
Safety standards
● IEC/EN 62368-1, UL/CUL 62368-1, GB 4943.1,J60950-1(H27), J62368-1(H30), AS/NZS 60950.1, AS/NZS 60065, K60950-1
EMC standards
● EMI standards： EN55032, FCC Part15 Subpart B, ANSI C63.4
● EMS standards：EN55024, EN55035, EN61000-3-2, EN61000-3-3
